The Wizard frame

＊Pre-orders are open until April 8th!＊



About Order

＊Arriving around September.

＊If you don't need the fork, just choose frame without fork.

＊Horizontal dropout is not included. Please buy here!

＊Cancellation is not possible. Please be careful.



Back to the 90s!

That was our wish, and that's why we make “The WIZARD”.

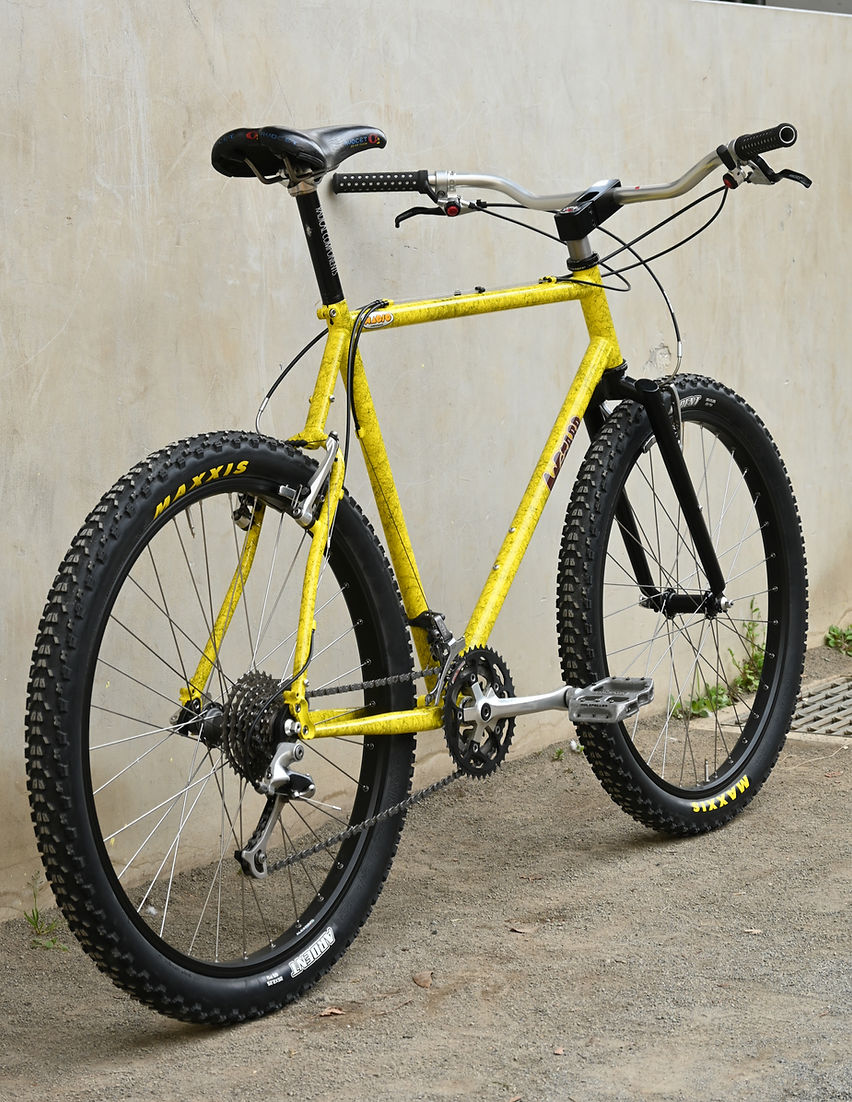

What we wanted to make was a normally 26"ATB.

90s style that's easy to use even now...

Standard and simple specifications.

132.5mm rear spacing.

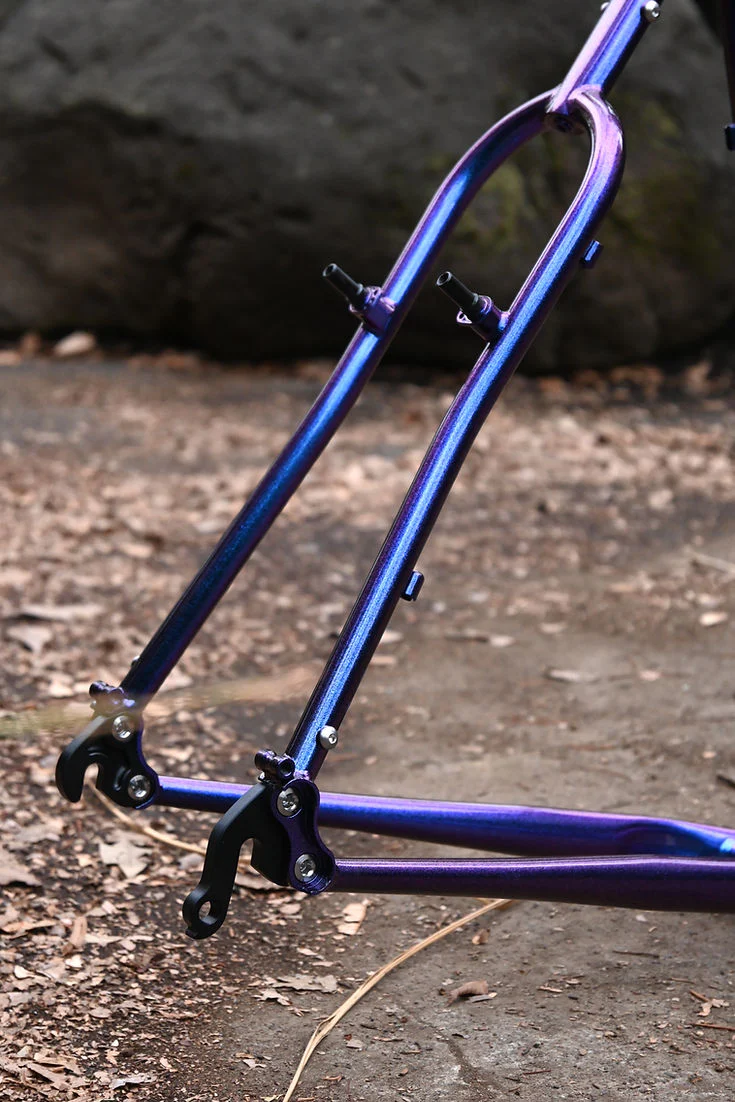

Can be converted to single speed. (Please buy horizontal dropout)

The magical frame that will grant your wishes…

That's our WIZARD.



By the way, I thought some people didn't need a fork.

You can buy just the WIZARD frame.

Cargo forks, Barnacles forks, 90s ATB forks, and suspension forks….

Please use your favorite fork.



You'll never have trouble choosing parts.

Digging through the piles of parts lying dormant in the garage would surely be fun.

Have sweet dreams until the wizard arrives.



Spec

・Tube : Cro-mo Steel

・Head Tube Diameter : 1-1/8"

・Bottom Bracket : 68mm English (BSA) Threaded

・Rear End Spacing : 132.5mm, QR

・Seat Post Diameter : 27.2mm
・Brake mount :  V-brake or Canti brake

・Max Tire Size : 26 x 2.5"

・Chainring clearance : Triple crank 46t x 34t x 24t

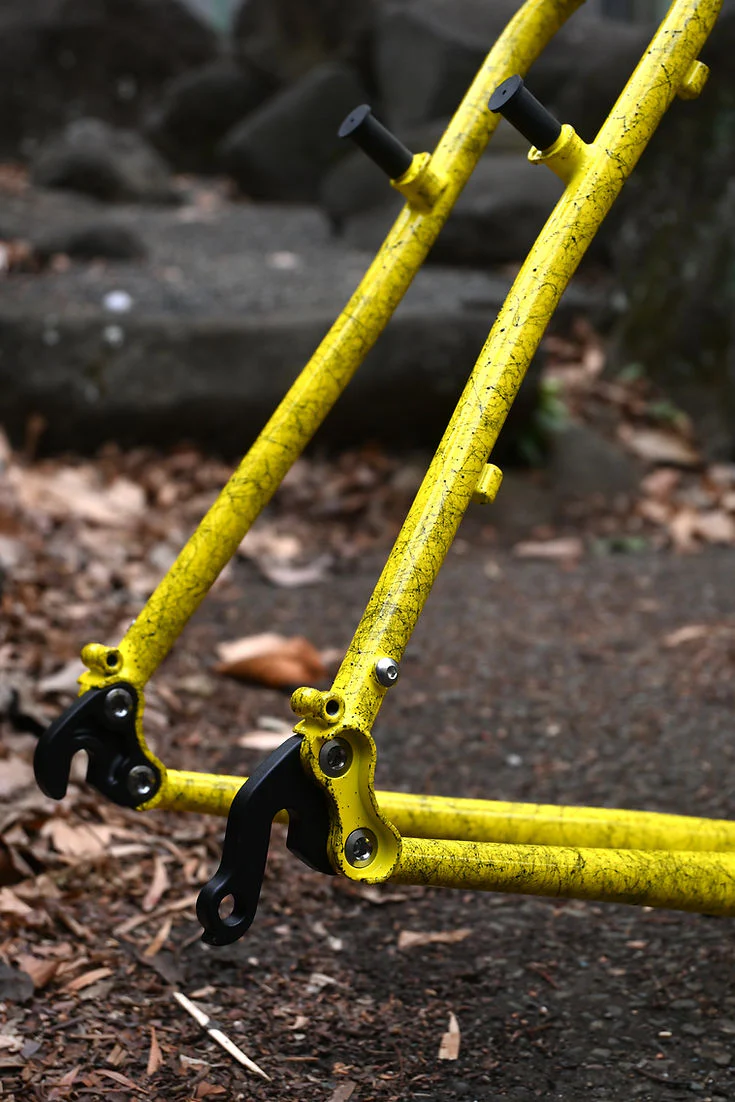

・It can be change to the Horizontal dropout. (It is not included. Please buy here!)

・Rear rack and mudguard mounts.

・Triple cage mounts.

・You can buy just the frame. (it’s no fork ver)

・Passed the "ISO City/Trekking standard test"

・Made in Taiwan.

Frame Geo

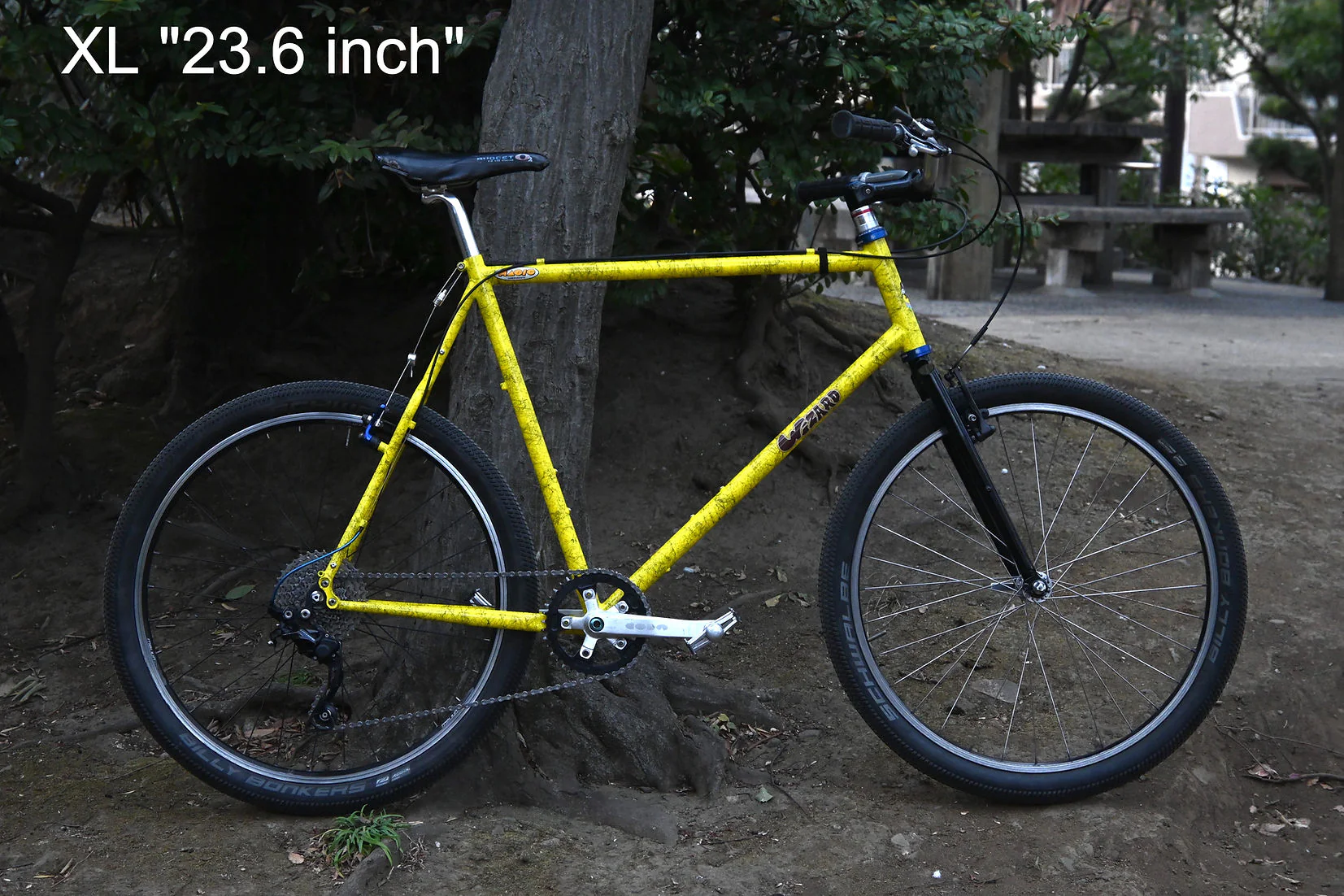

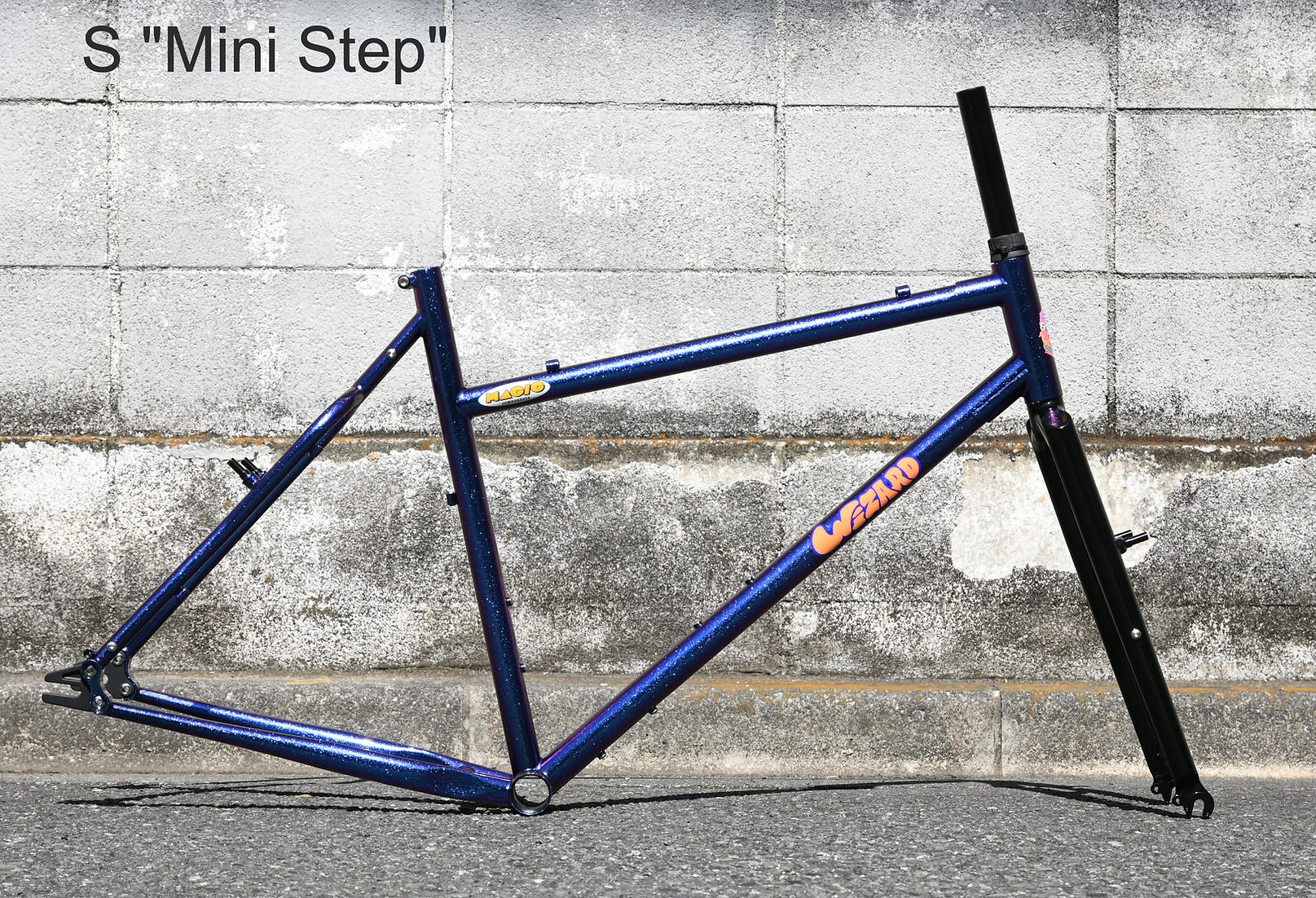

Size	S (19.6”)	M (20.5”)	L (22”)	XL (23.6”)
Top Tube (Effective)	570mm	570mm	600mm	630mm
Seat Tube (C-T)	500mm	520mm	560mm	600mm
Head Tube Angle	70°	70°	70°	70°
Seat Tube Angle	72°	72°	72°	72°
Head Tube Length	135mm	120mm	150mm	180mm
Chainstay Length	425mm	425mm	425mm	425mm
BB Drop	50mm	50mm	50mm	50mm
Fork Rake	45mm	45mm	45mm	45mm
Fork Axle To Crown	395mm	395mm	395mm	395mm
