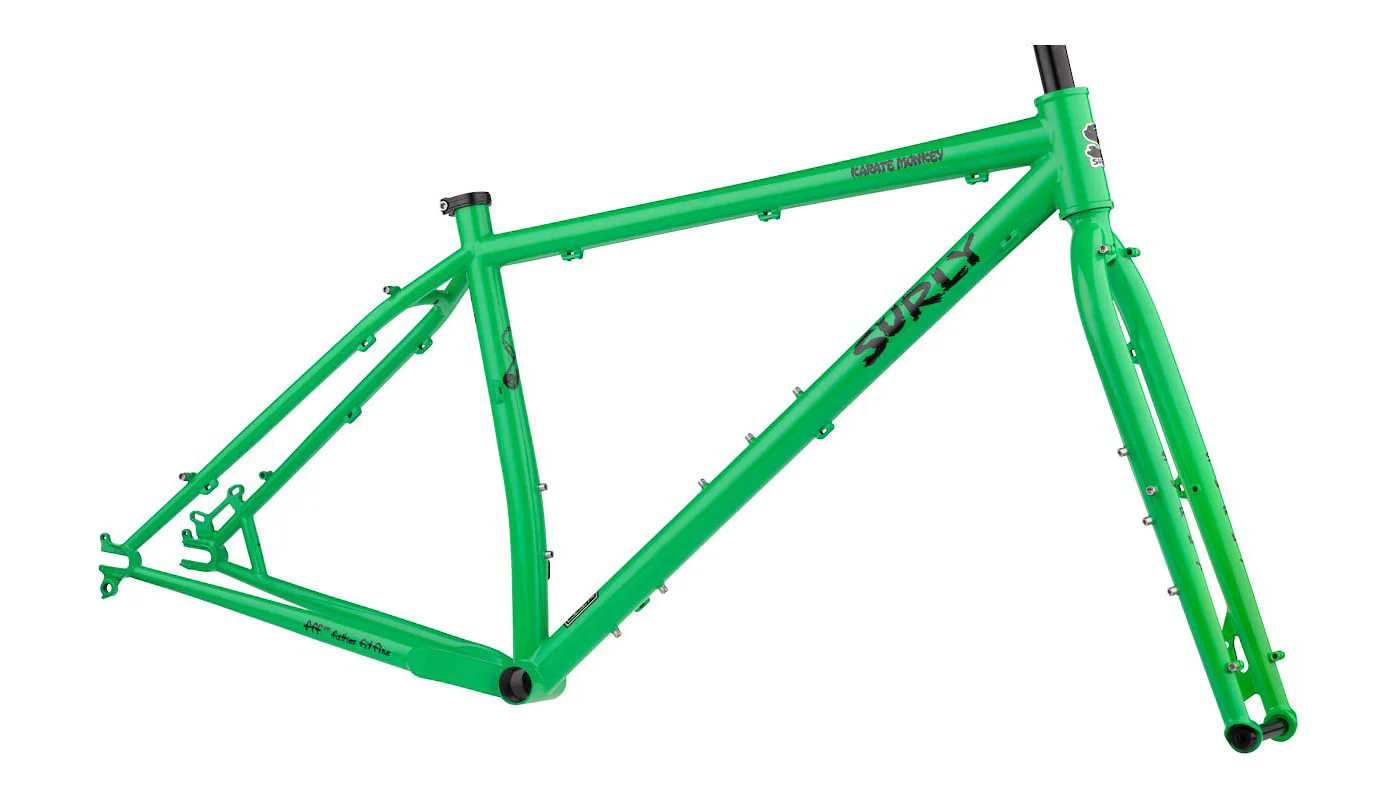

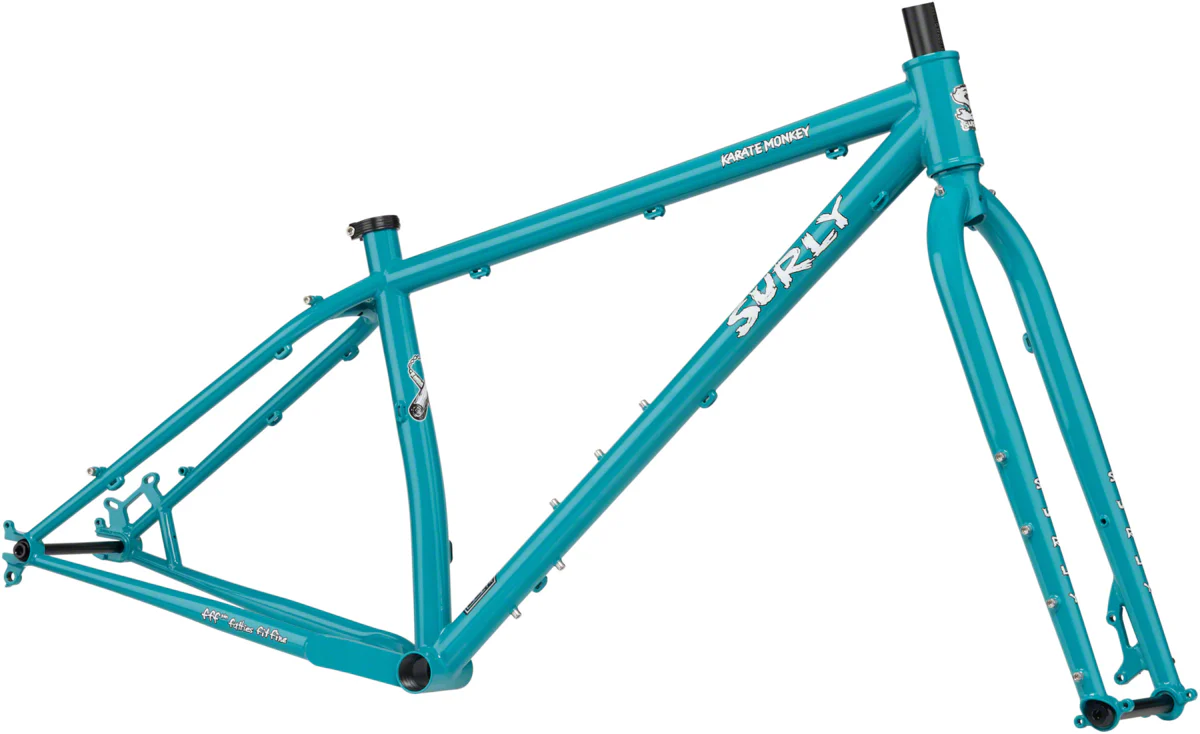

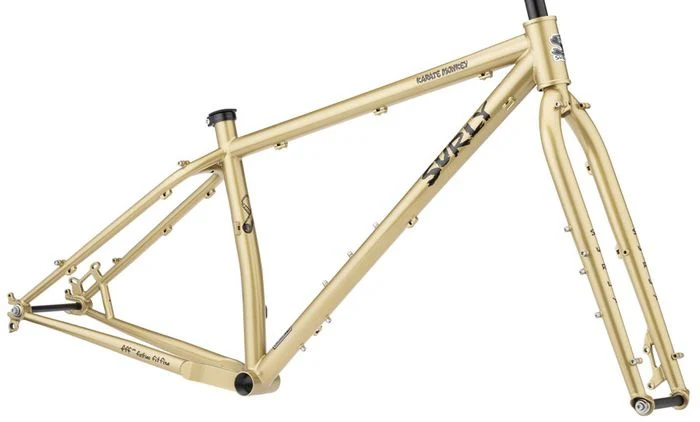

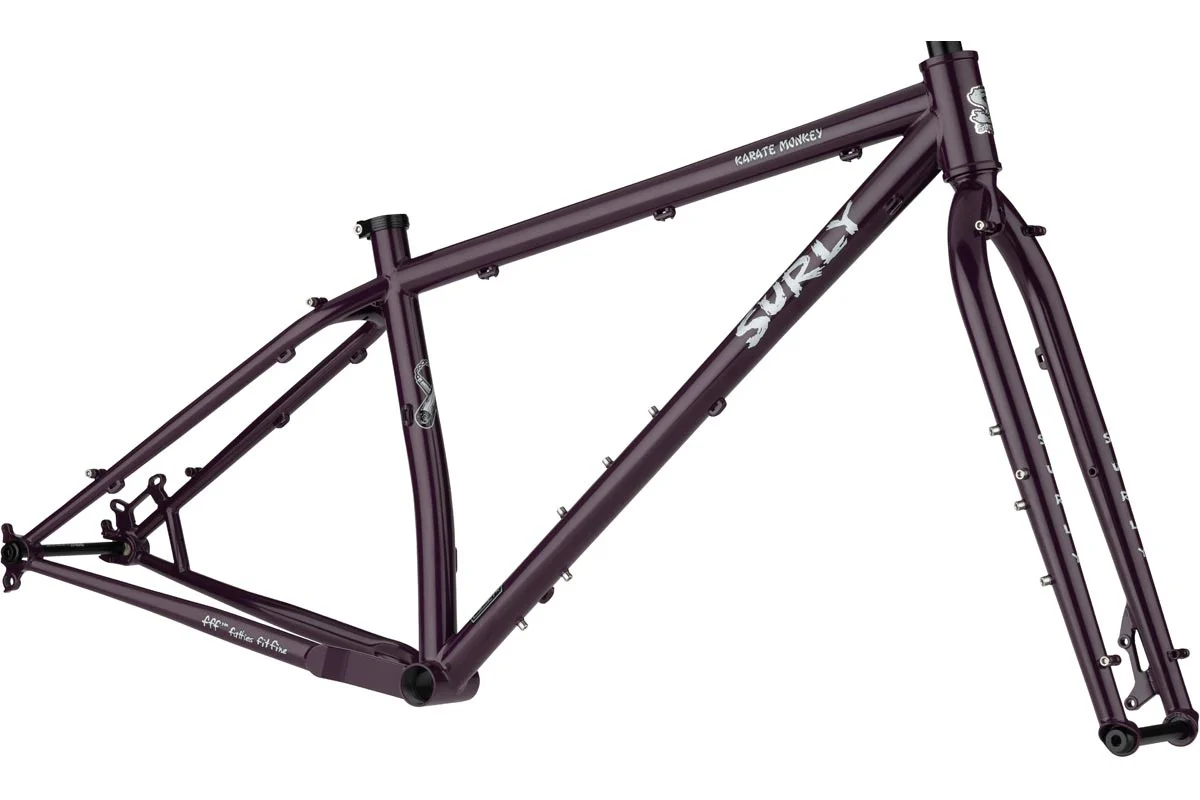

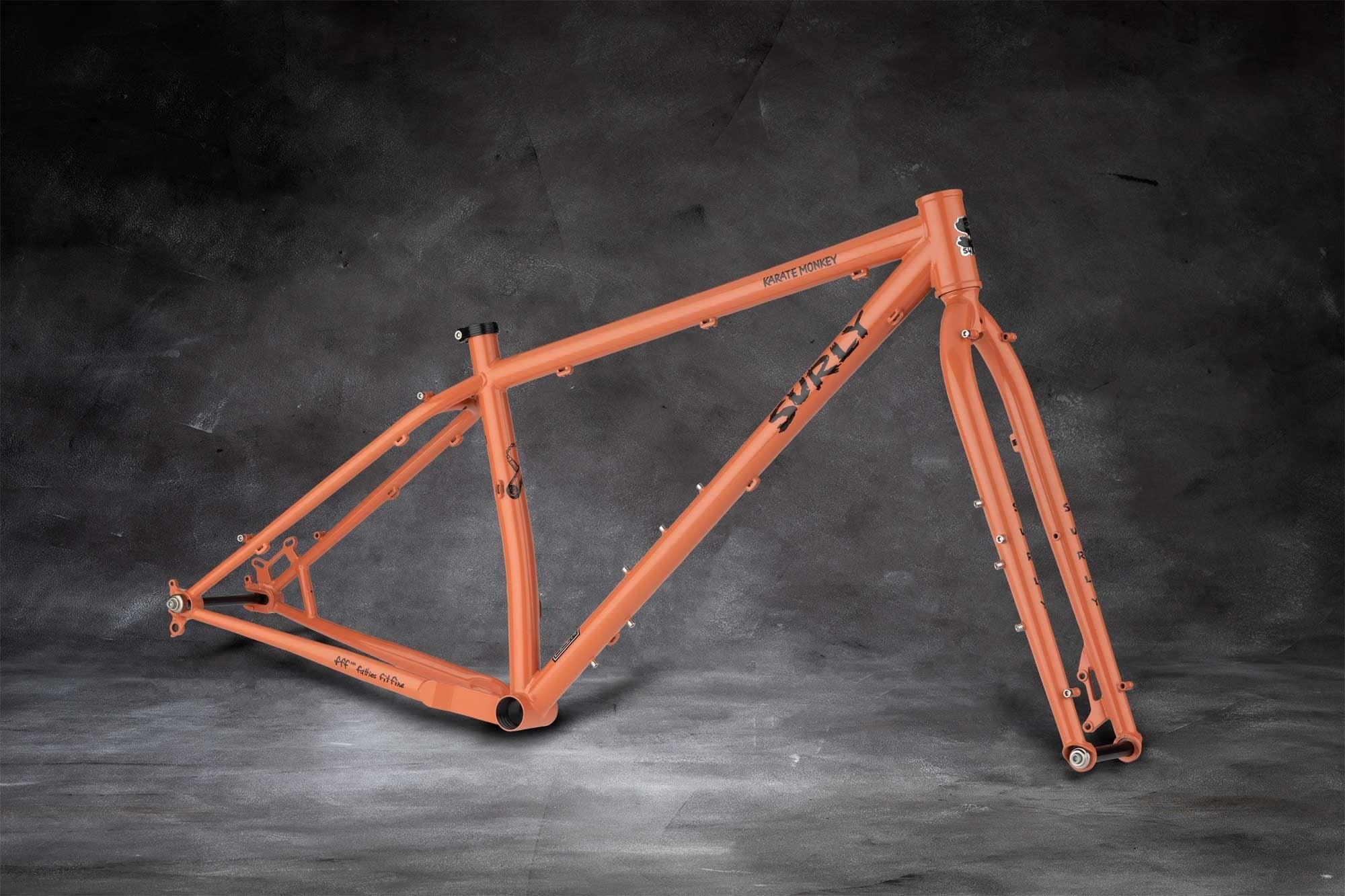

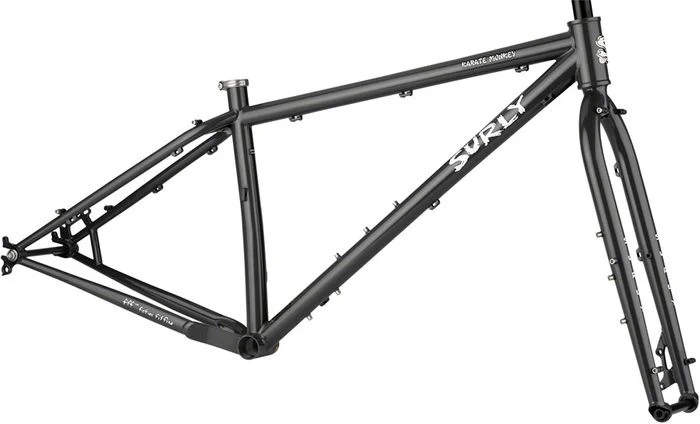

Surly Karate Monkey Frameset

A perennial staff favorite for general trail riding and bikepacking, super versatile and super tough.

Suspension corrected fork, compatible with dropper seat post, 44mm headtube, tyre clearance for 29” x 2.5” or 27.5” x 3”. Throw whatever you have on this baby and she'll be able to Make. It. Work!!! (.....except for those rim brakes.....)

See you on the dirty streets, Champ!

Geometry

SIZE	XS	SM	MD	LG	XL
Reach	377	402	427	450	472
Stack	597	597	597	606	615
Head Tube Angle	69.0°	69.0°	69.0°	69.0°	69.0°
Head Tube Length	100	100	100	110	120
Seat Tube Length	330	368	419	470	521
BB Drop	55	55	55	55	55
Wheelbase	1053	1078	1103	1129	1155
Chainstay Length	423	423	423	423	423
Top Tube Length, Actual	549.7	560.4	575	597.5	624.5
Top Tube Length, Effective	560	585	610	635	660
Seat Tube Angle	73.0°	73.0°	73.0°	73.0°	73.0°
Standover Height	743	759	783	812	827
Crank Length	170	170	175	175	175
Fork Length	483	483	483	483	483
Fork Rake	47	47	47	47	47
