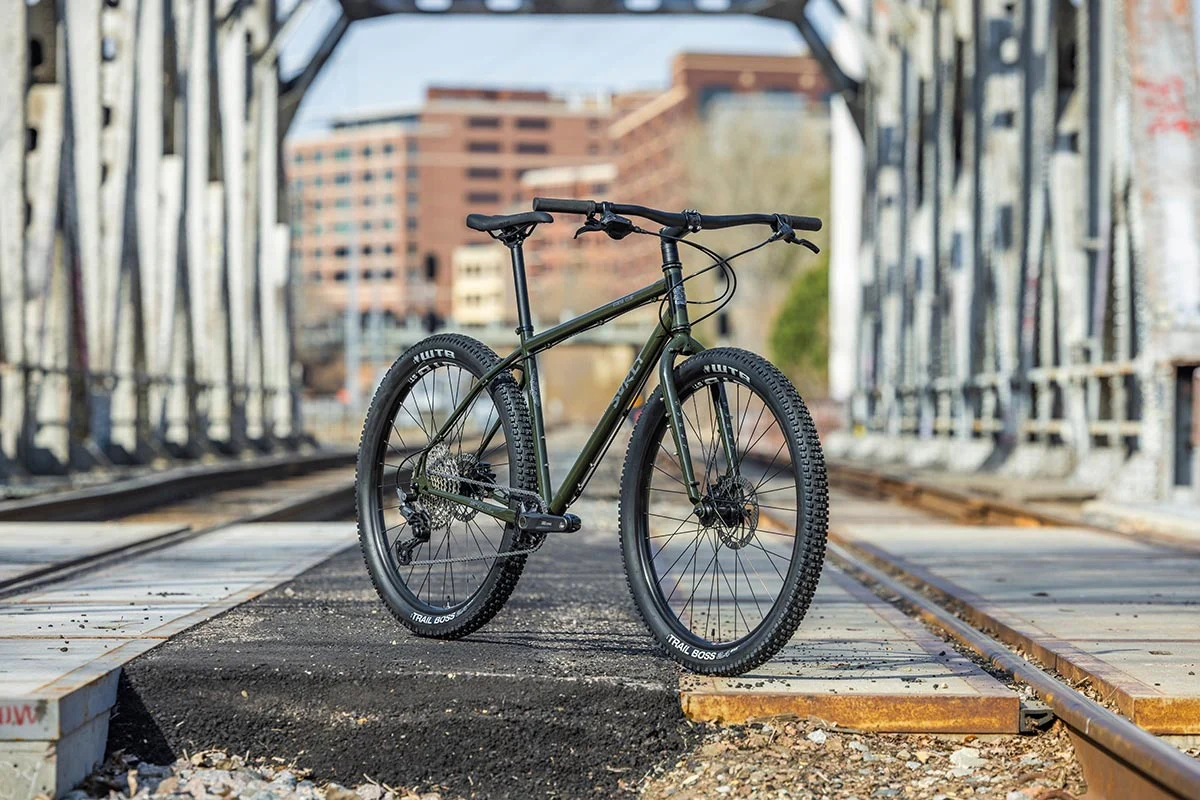

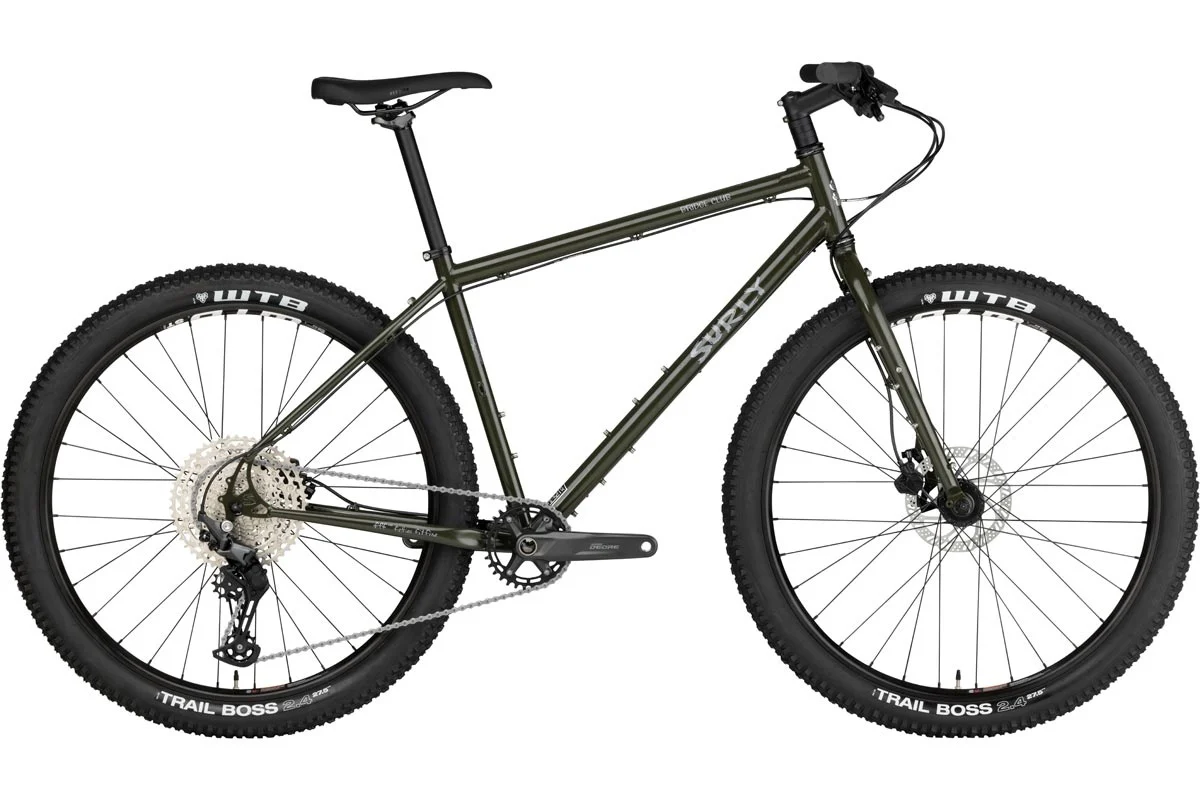

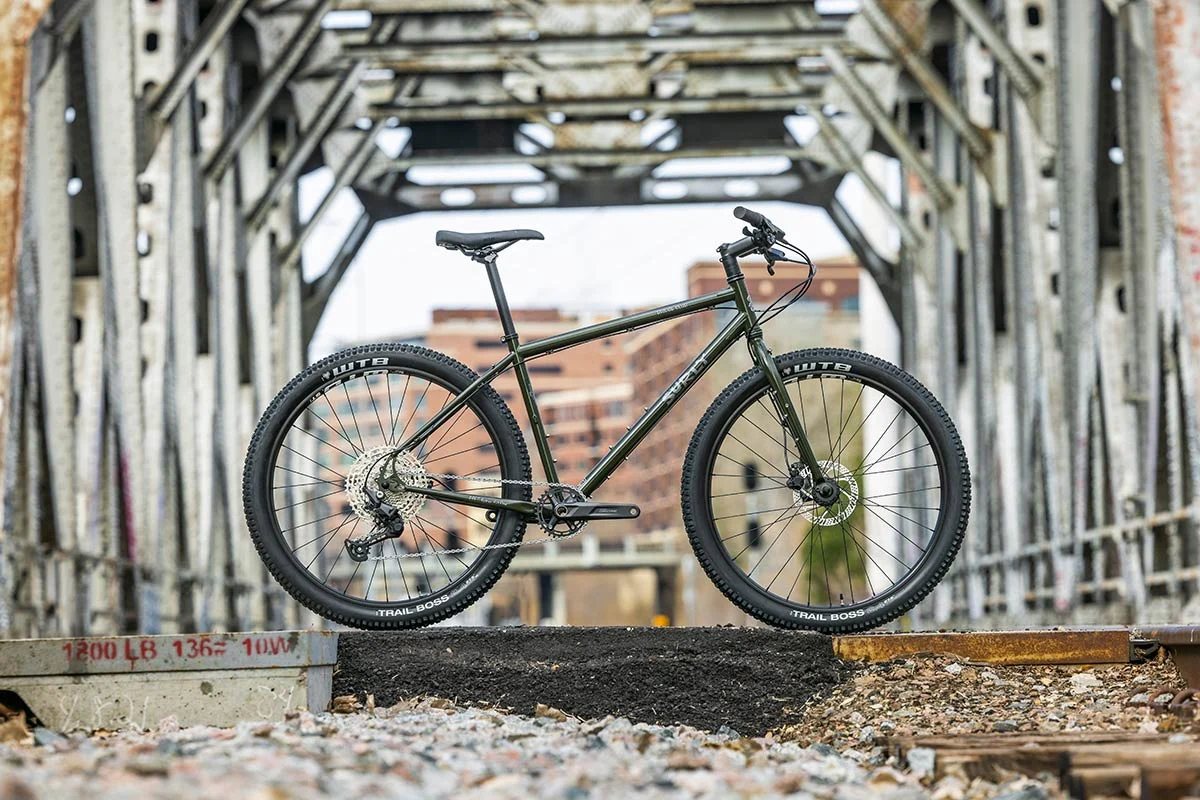

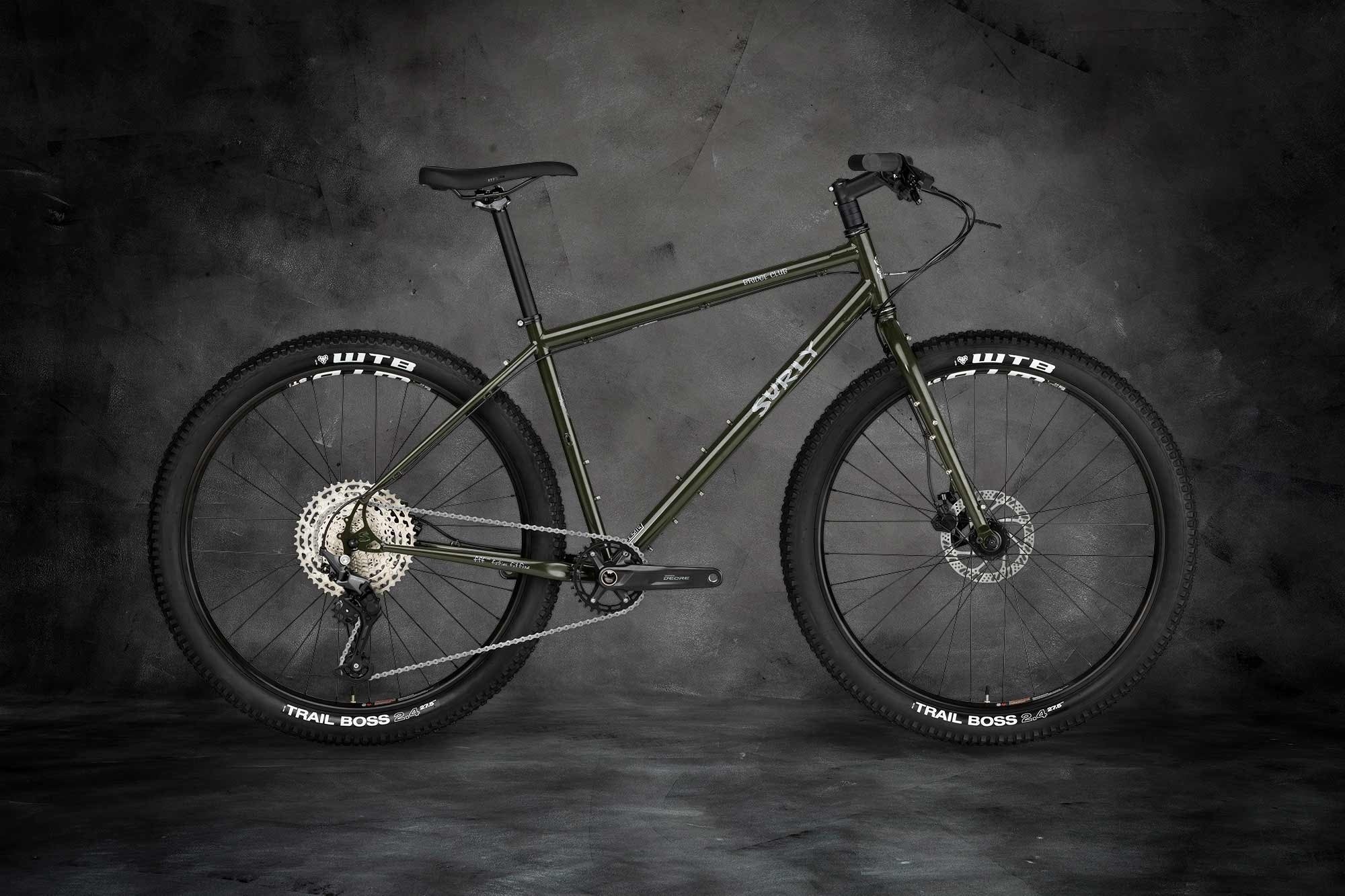

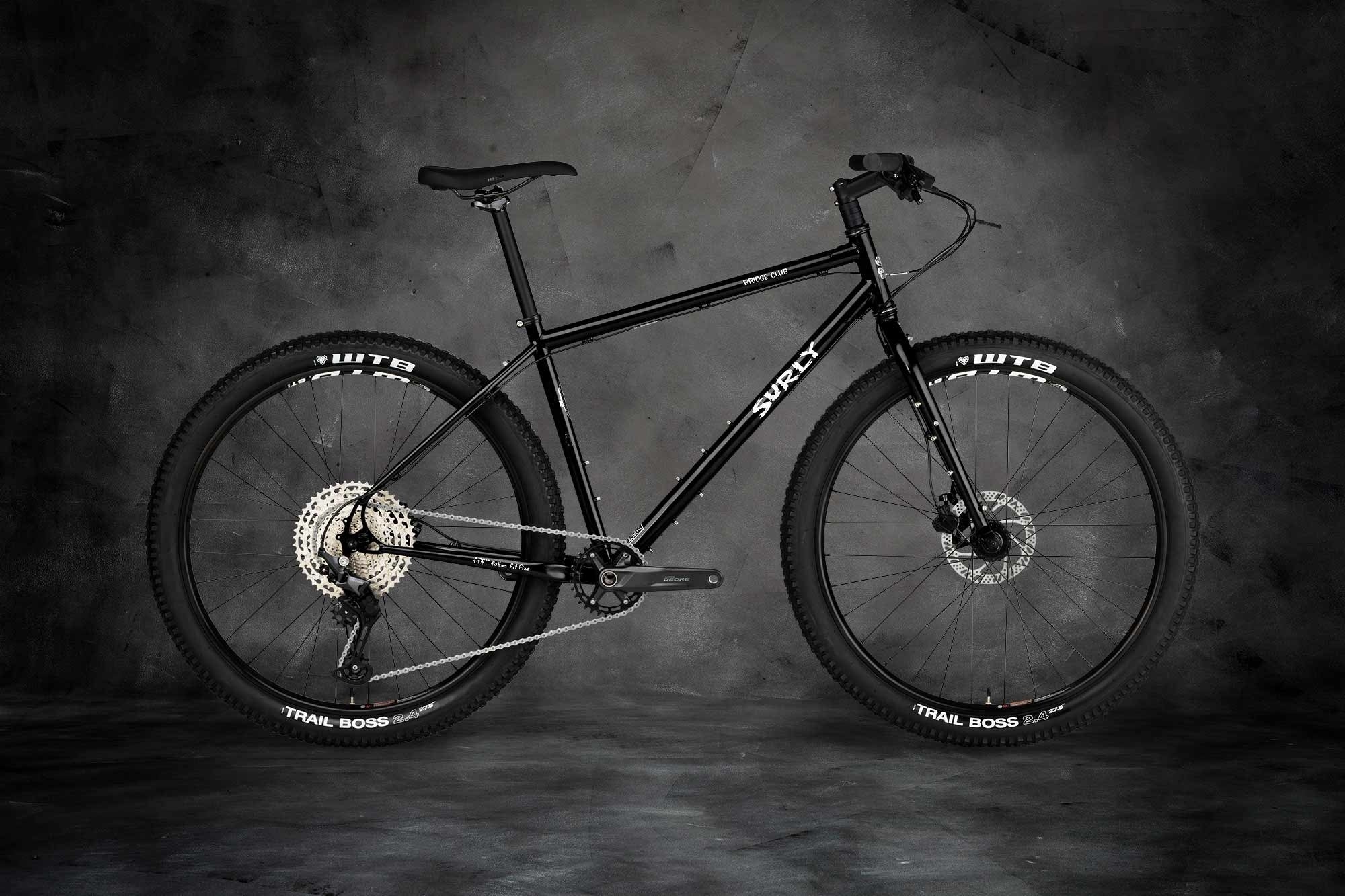

Surly Bridge Club 27.5 1x11
The most popular Surly model of the last few years, the Bridge Club is an amazingly versatile bike. Everything from daily commuting to adventurous offroad touring !
Features:
- Clearance for 27.5x2.8 tyres! Or switch to 700c wheels and up to 47mm tyres.

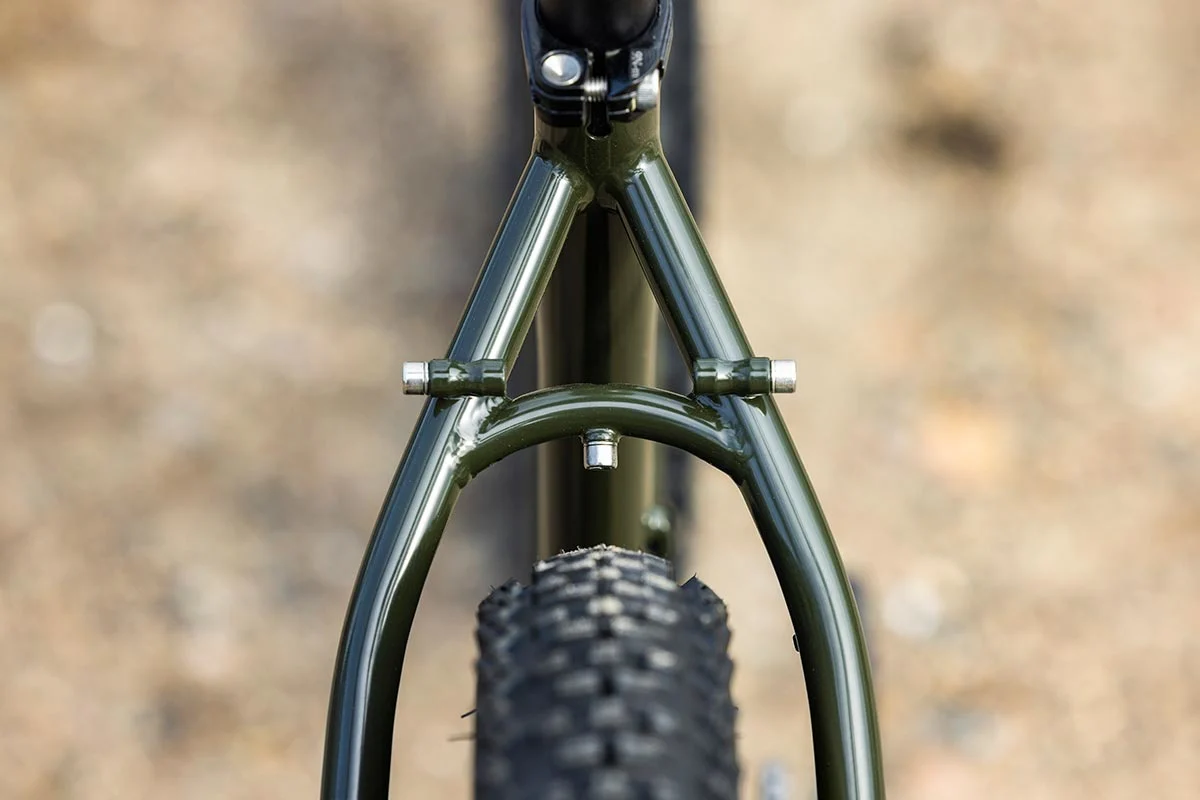

- Oodles of frame mounts for all kinds of accessories such as racks and water bottles or micropanniers.
- Shimano 11 speed drive train.
- Versatile bike .
(If we have a frameset in stock in your size we can also build a complete with a very similar spec to the complete bike at almost the same price.).
Geometry & Sizing:
| SIZE | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Reach | 376 | 397 | 419 | 434.5 | 444 |
| Stack | 553 | 567 | 576 | 590 | 609 |
| Head Tube Angle | 70.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length | 110 | 120 | 130 | 145 | 165 |
| Seat Tube Length | 335.6 | 406.4 | 457.2 | 508 | 558.8 |
| BB Drop | 60 | 60 | 60 | 60 | 60 |
| Wheelbase | 1032 | 1047.5 | 1073 | 1093 | 1109 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Top Tube Length, Actual | 534 | 547.5 | 570 | 591.5 | 610.3 |
| Top Tube Length, Effective | 545 | 570 | 595 | 615 | 630 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Standover Height | 709 | 750.5 | 780 | 812 | 845.5 |
| Stem Length | 80 | 80 | 90 | 90 | 100 |
| Stem Angle | 6° | 6° | 6° | 6° | 6° |
| Crank Length | 170 | 170 | 175 | 175 | 175 |
| Fork Length | 420 | 420 | 420 | 420 | 420 |
| Fork Rake | 43 | 43 | 43 | 43 | 43 |
Components
Headset
FSA Orbit MX
Seatpost Clamp
Surly Stainless 30.0
Seatpost
Promax SP-2016, 27.2 x 350mm, 12mm offset
Stem
Promax DA-296, 31.8mm
Grips/Bar Tape
Velo Black
Saddle
WTB Volt Medium
Handlebar
Salsa Bend
Drivetrain
Front Derailleur
N/A
Rear Derailleur
Shimano Cues U6000 GS
Cassette
Shimano Cues LG400, 11-50t, 11spd
Chain
KMC eGlide EPT
Crankset
Shimano Cues U6000, 32T
Shifter
Shimano Cues U6000
Brake Levers
Tektro HD-M275/276
Brake Calipers
Tektro HD-M275/276, 2 piston
Bottom Bracket
Shimano BB-MT501
Rotors
Tektro 160/160, 6-bolt
Wheels
Tyres:

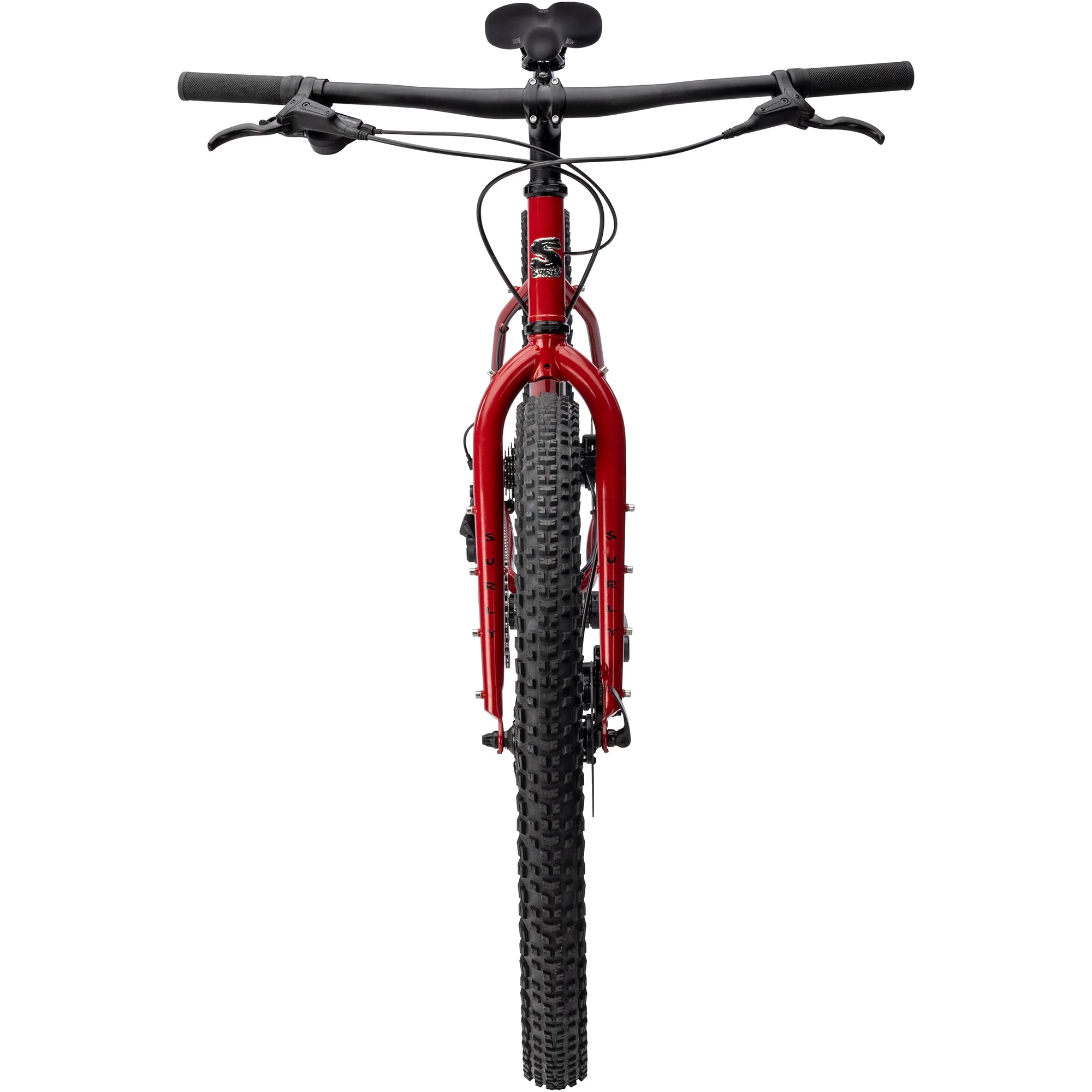

Lingering cranberry: Teravail Ehline 27.5 x 2.5", Durable, 60tpi, Tubeless Ready, WTB TCS Sealant Included

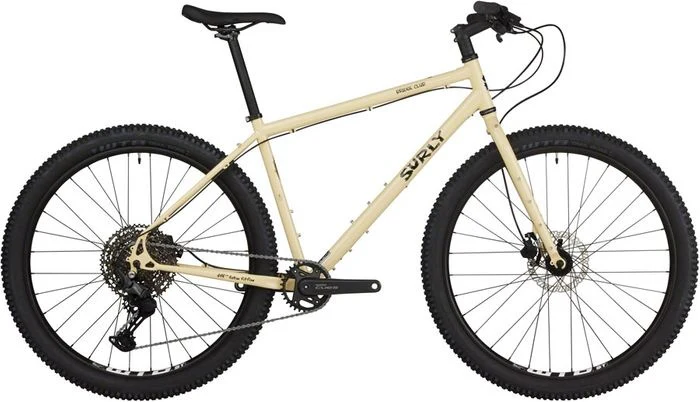

Black/Whipped Butter: WTB Trail Boss 27.5 x 2.4", 27 tpi, Wire Bead, non tubeless tyres, but rims are tubeless compatible.
Front Hub
Novatec QR x 100mm, 6-bolt, 32h
Rear Hub
Novatec QR x 141mm, 6-bolt, 32h
Spoke
14G Black
Rim
WTB ST i30 27.5", TCS 2.0, 32h
