Omnium Nano Frameset



The lovechild of a BMX and a Cargo Bike ? Or a cargobike right sized for urban living ? The Omnium Nano is a fast, light and agile cargo bike thats easy to live with and punches way above its weight in the versatility stakes!

Omnium Nano framesets lets you build up your dream cargo bike, urban bike or general tiny wheel adventure mobile !

If you would like wheels we have some great options to make it a rolling chasis.

What is the Omnium Nano ?

The Nano is a 2 in 1 solution for urban dwellers, the smaller footprint makes it easier to have a cargo bike in smaller, more cramped urban living quarters while the smaller wheels and shorter wheelbase encourages a fun & agile riding experience, without compromising the loading capabilities.

With a smaller footprint the Nano also makes it easier to integrate your bike with public transportation and encourage multimodal transportation making it easier to ditch your car for even bigger daily distances by bike.

The Nano is integrated with more standards from the Cargo & Mini-Max V3’s making more accessories available to the frame for instance the ability to add the Tilting Rack Bracket giving the option to make the footprint of the bike even smaller when parked.

Designed around two 20” wheels with a 2.15” tyres and shorter wheelbase than our other bikes, this gives us a snappier ride and a small footprint for the overall bike – the smaller wheels also get you up to speed faster which is great for the more start and stop nature of urban riding.

Design Rationale:

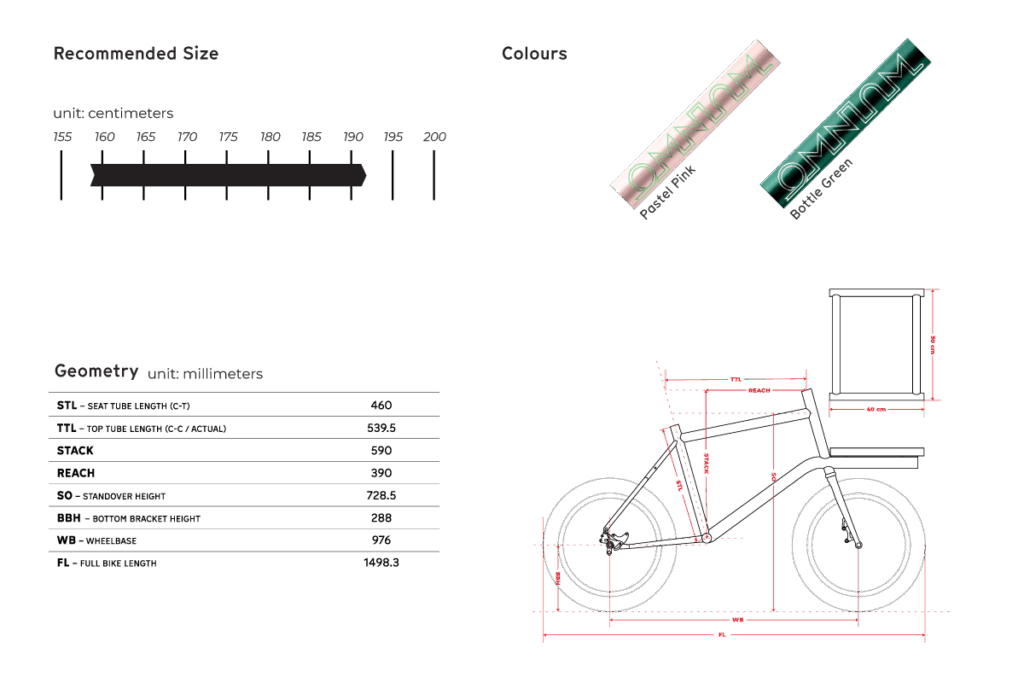

We have slopped the top tube to lower the stand over height and increase the number of people that can enjoy the bike. While only being available in one size, that lower sloped top tube makes it accessible to riders of almost any body proportion fitting riders from 160cm to 190cm and still being a great ride.

While being a small bike the Nano still retains the loading capabilities of our bigger bikes, with a max weight of 125kg you can pack the rack full with whatever you want and never need to worry about reaching its weight limit.

Like our other bikes we use IS brake mount which is optimal for flat bar bikes and gives easier adjustement of your brakes – we have also kept the 15x100mm thru axle on the fork – while the rear will depend on your choice of rocker dropouts.



Frame Material	Double Butted Chromoly Steel Frame
Size	One Size
Rack Dimensions	400x500mm
Seat post diameter	31,6mm
Seat post clamp size	34,9mm
Fork Brake Mount	IS – Disc only
Rear Brake Mount	Dependent on insert choice – Disc only
Rear Wheel	406 x Dependant on insert choice.
Front Wheel	406, 15x100mm spacing
Tyre Clearance Front	55mm with mudguards
Tyre Clearance Rear	55mm with mudguards*
Thru Axle Rear	12×142, 172mm long, 19mm thread length, 1,5mm pitch
Thru Axle Front	15x100mm, 125mm long, 17mm thread length, 1,5mm pitch
Headset	1 1/8” Ahead
Bottom Bracket	68mm BSA
Gears	For 1x rear derailleur gear, single speed or internal hub gears
Rack Bolt	M15 x 15mm
Standard Rack Weight	TBU
Frame Kit Weight	TBU
Maximum Loading Weight on Front Rack	40kg
Maximum Total Loading Weight Incl. Rider	125kg

*Rear tyre clearance is restricted by chain line compatibility
