BlackSnow EDC - MK2 Cargo Frameset

The BlackSnow EDC Mk2 is a capable small form factor cargo bike that can double as a daily ride. Or perhaps the otherway, its a fun daily ride bike that can double for occasional cargo and hauling duties !

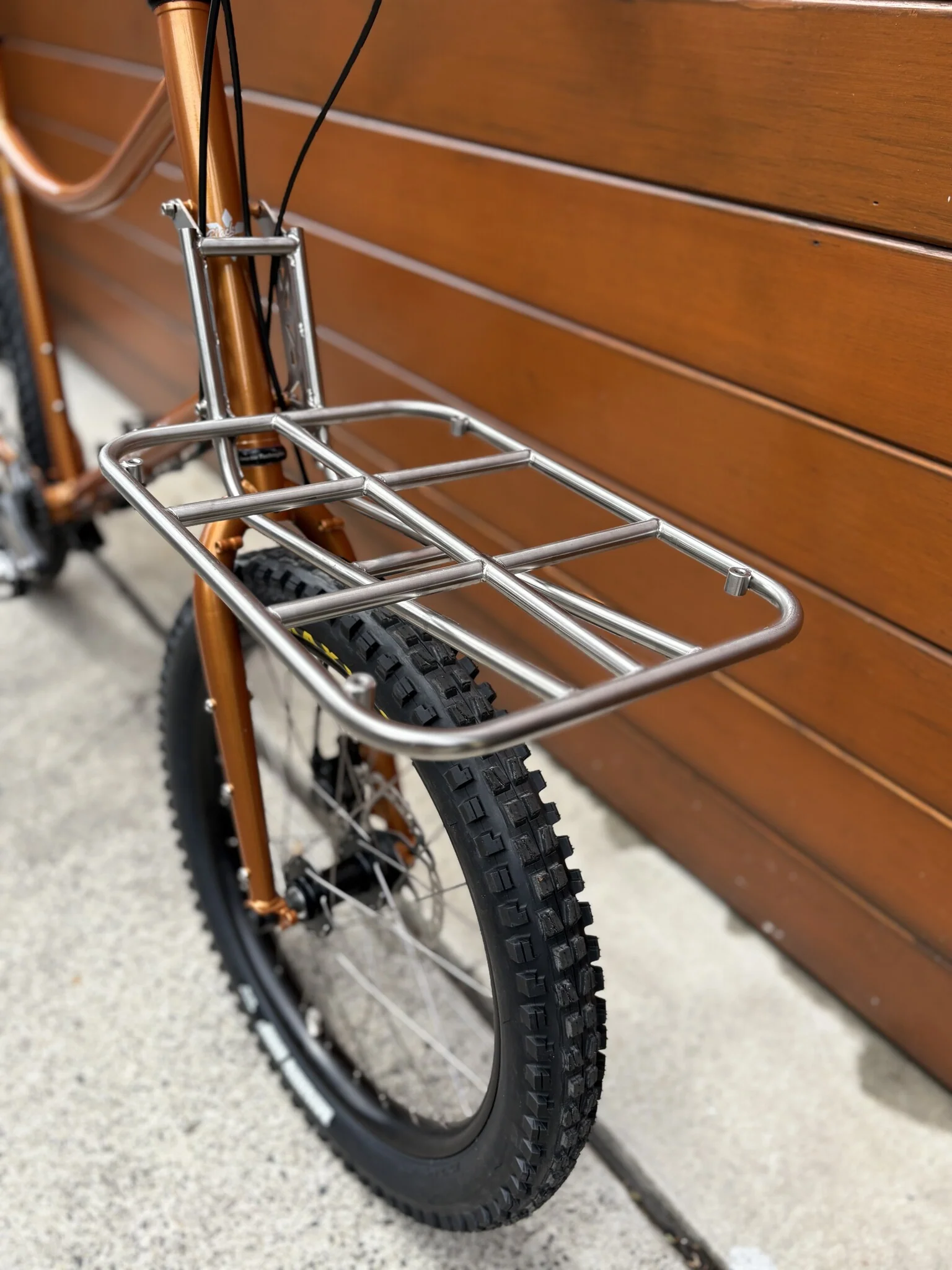

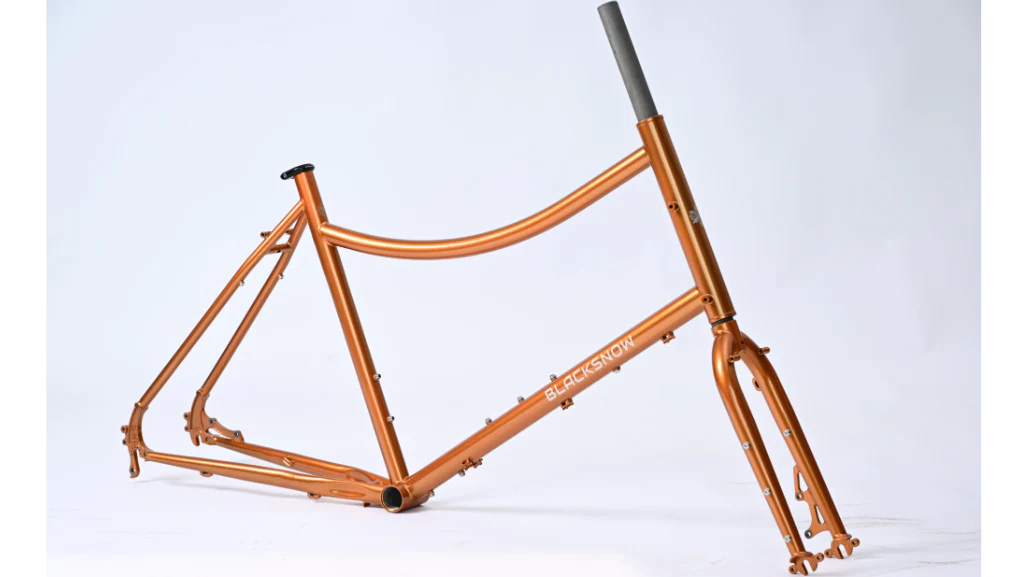

Frameset includes Frame + Fork + Stainless steel front rack.

Does not include headset or seatpost collar.

We can build a complete bike to your spec or to simple House Spec

Frame is built for a 20" front, 27.5 rear. Clearance for up to 2.4" tyres

QR front 100x9 and 135x10 rear

27.2 seatpost

68mm BSA threaded bottom bracket.

Simple 1 1/8 headset: EC34 - 28.6 / EC34 - 30

IS brake mounts front and rear

Size	Medium (M)
Seat Tube (C-T)	500mm
Effective Top Tube	605mm
Chain Stay*	445mm (±7)
Head Tube	280mm
Head Tube Angle	69.5°
Seat Tube Angle	71.5°
BB Drop	55mm
Standover**	661mm
Reach	428mm
Stack	529mm
Fork Rake	25mm
Fork Top Tube Length	450mm
Fork Axle to Crown	320mm
Wheelbase	1107mm
